Refrigeration's Largest Access Port for Maximum Flow

The new ZeroMax™ Access Port and Tooling system was designed to address the shortcomings of process stub tubes used by OEM manufacturers of PTAC, Commercial Refrigerators and other equipment using ”Hermitcally sealed compressors”. ZeroMax provides advantages over process tubes, including:

•    Provides easy, repeatable & hermetically sealed system access to add/reclaim refrigerant.
•    Eliminates potential connector blow-off & dangerous discharge when charging refrigerant, protecting operators & the environment.
•    Eliminates wasted copper tube ends and the emission to the environment of refrigerant contained in them.

Processing PTAC/PTHP, Commercial Refrigerators, etc. using traditional process “stub” tubes is cumbersome, can release refrigerant to atmosphere, and requires time consuming manual “Pinch-N-Braze” sealing or expensive automatic ultrasonic welders to create a permanent seal upon processing completion. Moreover, gaining system access for rework or post-production service is a time consuming and often unreliable process, e.g. refrigerant “Piercing Saddle Valves” that can result in leakage of refrigerant to the environment.

With FasTest’s ZeroMax™ Access Port system, manufacturers can eliminate the process stub tube altogether while maintaining full flow for the fastest possible evacuation. In addition, should system access be required for rework, field service or end-of-life refrigerant recovery, the ZeroMax™ system provides easy access and a reliable hermetic seal, eliminating the need for leak-prone, expensive saddle valves.

Also, as new, flammable, “A2L” & “A3” refrigerants are introduced, manufacturers want to eliminate refrigerant emissions to the atmosphere.  ZeroMax can provide true “Zero Emission Processing” capability resulting in no refrigerant escaping to the environment!

Contact AN EXPERT

Zero Leakage, Maximum Accessibility

The NEW ZeroMax™ access port system is designed to eliminate the need for Process “Stub” Tubes or common crimp type capping systems, and their associated crimping & welding equipment. OEM’s and Technicians now have easy, repeatable system access for rework, service, and end-of-life refrigerant recovery - that doesn’t leak.

ELIMINATEAsset 1.png

Eliminate Need for Process Tubes

ACCESSIBILITYICONAsset 1.png

System Accessibility

Reduce-Emissions-icon.svg

Near Zero Emissions

Applications

PTAC/VTAC & Heat Pumps

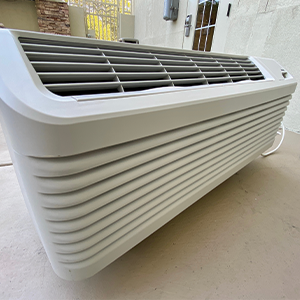

PTAC

Commercial Self-Contained
Display Units

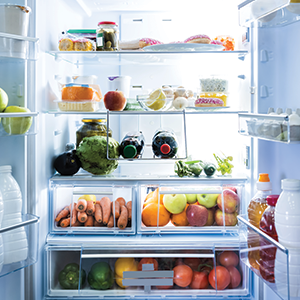

High-End Refrigerators

Split Systems

Hermetic Refrigeration Compressors

Anywhere a Process “Stub”
Tube is Used

Faster Processing with Optimized ZeroMax™ Tools

Quick connect Processing Tools are easy to use, very durable and can work with reclaim systems.

  • Ball latching, high flow connectors.
  • Ergonomic ball & sleeve action.
  • Safety Latch system will not disconnect under pressure.

Contact AN EXPERT

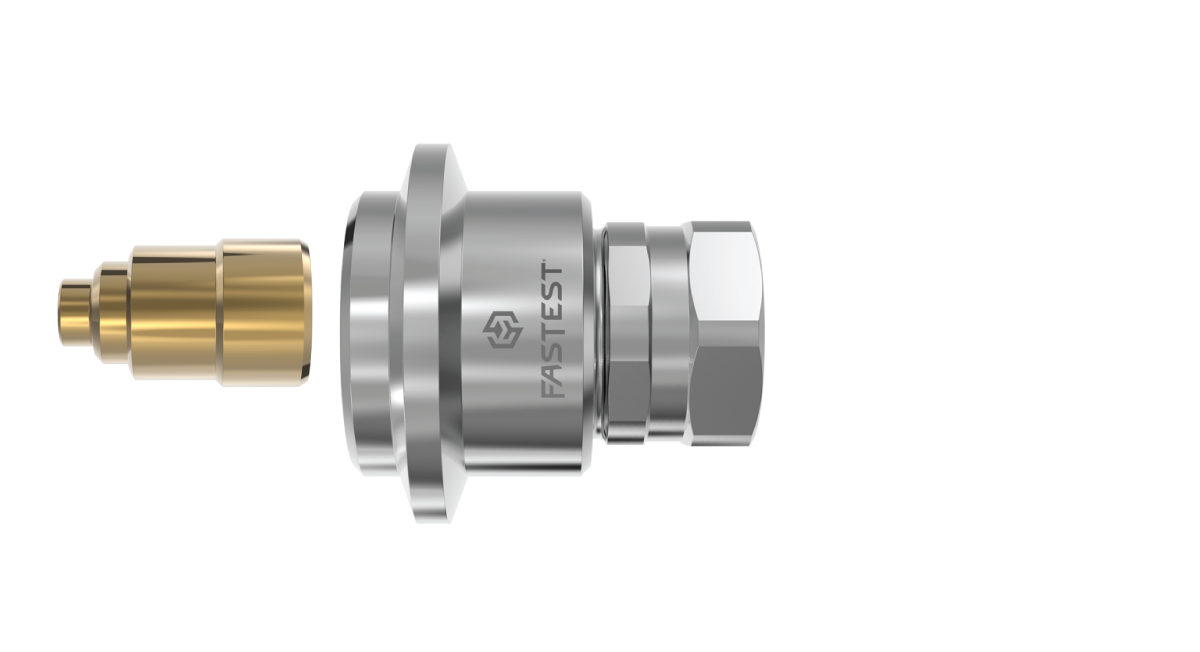

Leak/Proof Test


Quick Filling

Pressurize & empty system quickly through large flow path.

VieW LEAK TEST TOOL

Evacuation


Fast Evacuation

Unobstructed flow path yields maximum flow.

VIEW TRAVELER TOOL

VIEW Evacuation TOOL



Charge


Safe Charging

Charge Tool latch will not accidentally disconnect under pressure.

VIEW TRAVELER TOOL

VIEW CHARGE TOOL

All-In-One Field Service Tool

Field Service Tool for Installation and Service Technicians

Gain access to the refrigerant system for servicing. Designed to provide installation & service technicians with a single tool that can be used to perform multiple tasks - refrigerant reclaim, leak test, evacuation, charge and replace a PortMax™ access port plug without losing refrigerant charge.



View

Cut Evacuation Times in Half.

Fully automated evacuation cart for optimized refrigeration system processing with real-time monitoring and data acquisition.

Contact us

FasTest Access Ports and Pre-Evacuation Systems

CoreMax

The CoreMax Access Valve & Seat System provides up to five times greater processing flow than common Schrader® type.

CoreMax SV

With the advantages of FasTest’s leak-tight CoreMax high-flow valve, the CoreMax service valve and single processing tool provide high flow zero emission processing to improve manufacturing efficiency and reduce tooling costs.

PortMax

Speed up the lengthy evacuation process of large chiller, industrial & commercial packaged refrigeration systems ---  45% or more reduction in evacuation times compared to commonly used Packed Angle and Ball Valves.

System Evacuation

Optimized Mobile Evacuation Cart. EvacMax provides rapid and automated evacuation with real-time process monitoring and data acquisition. Technicians now have the ability to set testing targets, start the evacuation and walk away.
