CryoVent
Connection Tool for Venting Liquid Cylinders (800 psi/55 bar)
Imperial
Metric

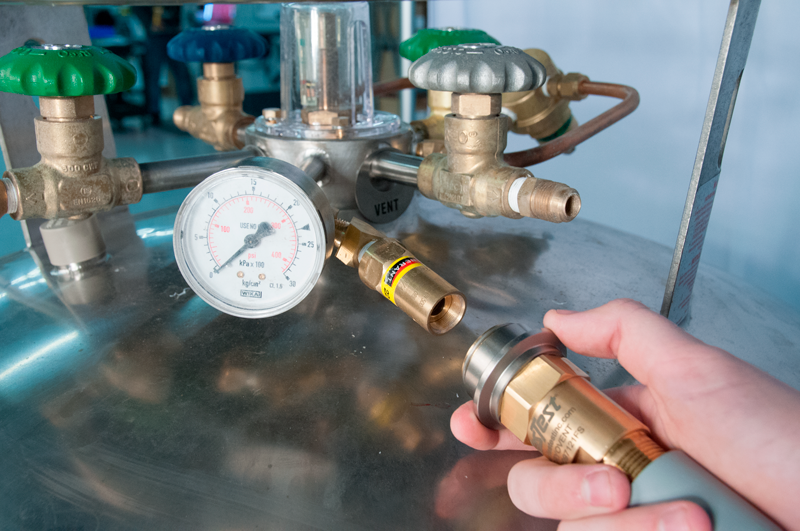

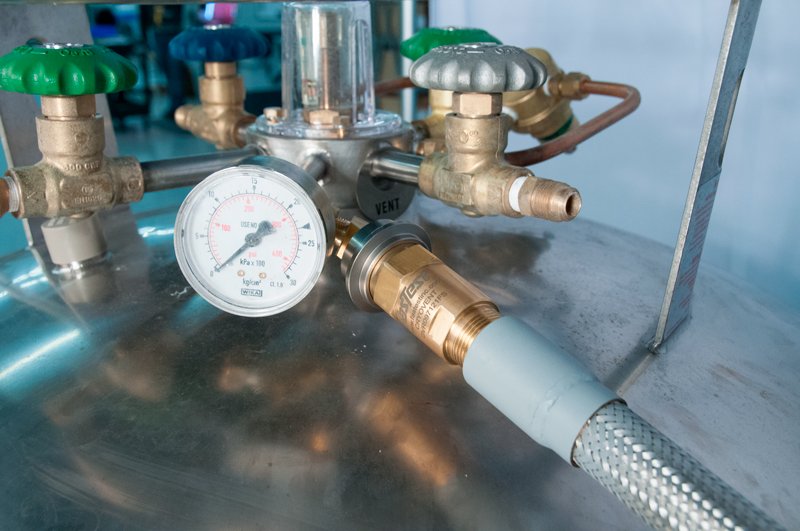

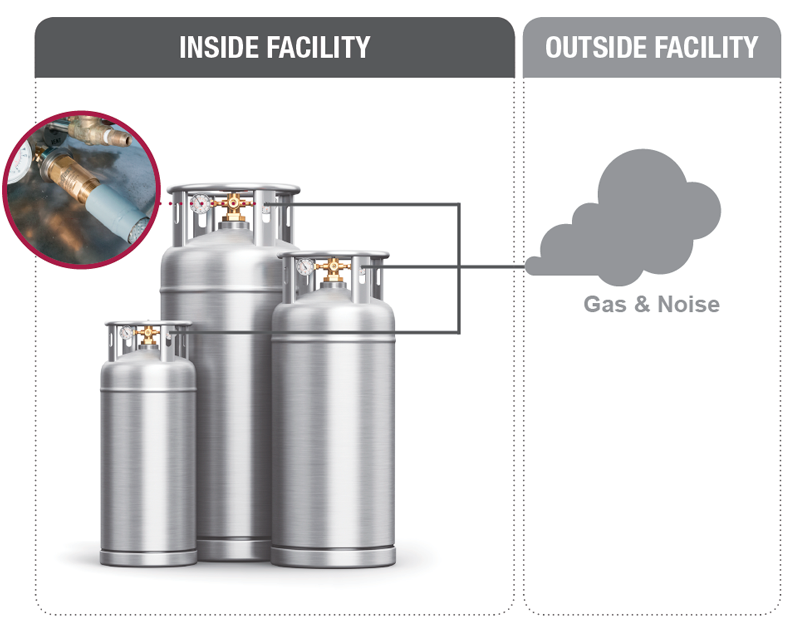

- Instant connection to pressure relief valves to safely direct vented gas to external locations.
- Accoustic noise reduction directs sound away from operator when attached to common stack.
- Sleeve latch to prevent disconnection under pressure.

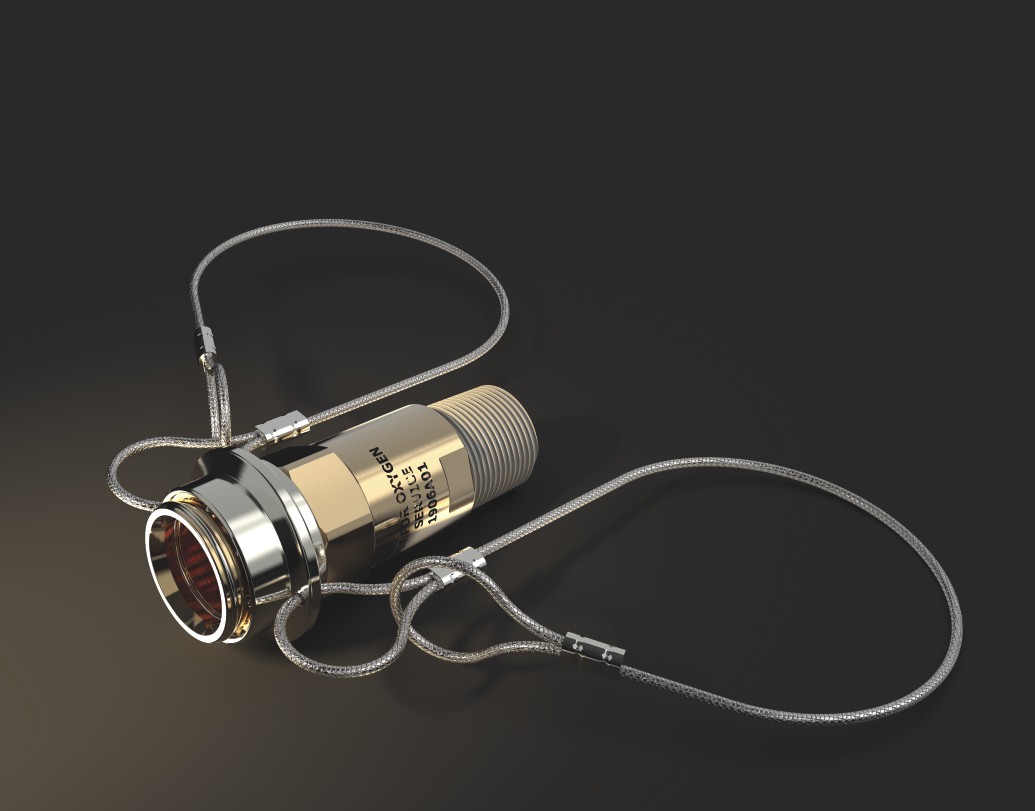

- Cable option assists with sleeve release for high condensation filling.
Designed For: filling, pressure testing, leak testing, and other related processes.
Connects To:
Generant and Rego Pressure Relief Valves
Pressure Rating:
Vacuum to 800 psi (55 bar)
Actuation Method:
Sleeve
Application Type:
Argon | Helium | Nitrogen | Inert Mixes
CryoVent Datasheet: Click Here
CryoVent Operating Instructions: Click Here
CryoVent Main Seal Replacement: Click Here
CryoVent Rebuild / Repair: Click Here
Product Video: Watch Here
