GasMate® GZNV
Internal Connections for Natural Gas and Burner Testing (5 psi/0.345 bar)
Imperial
Metric
- Ideally suited for gas-fired appliance and furnace testing.
- Adjustable ring to accommodate the widest sealing range in the industry.
- Non-sparking aluminum and brass components.
- Internal shut-off valve to stop the flow of gas when handle is in the disconnected position.
Designed For: leak testing and other related processes.
Connects To:
NPT Internal | BSPP(G) / BSPT Internal
Pressure Rating:
Vacuum to 5 psi (0.345 bar)
Actuation Method:
Lever Handle
Application Type:
Internal Threaded Connection for Gas Burner Testing
GZNV Datasheet: Click Here
GZNV Operating Instructions: Click Here

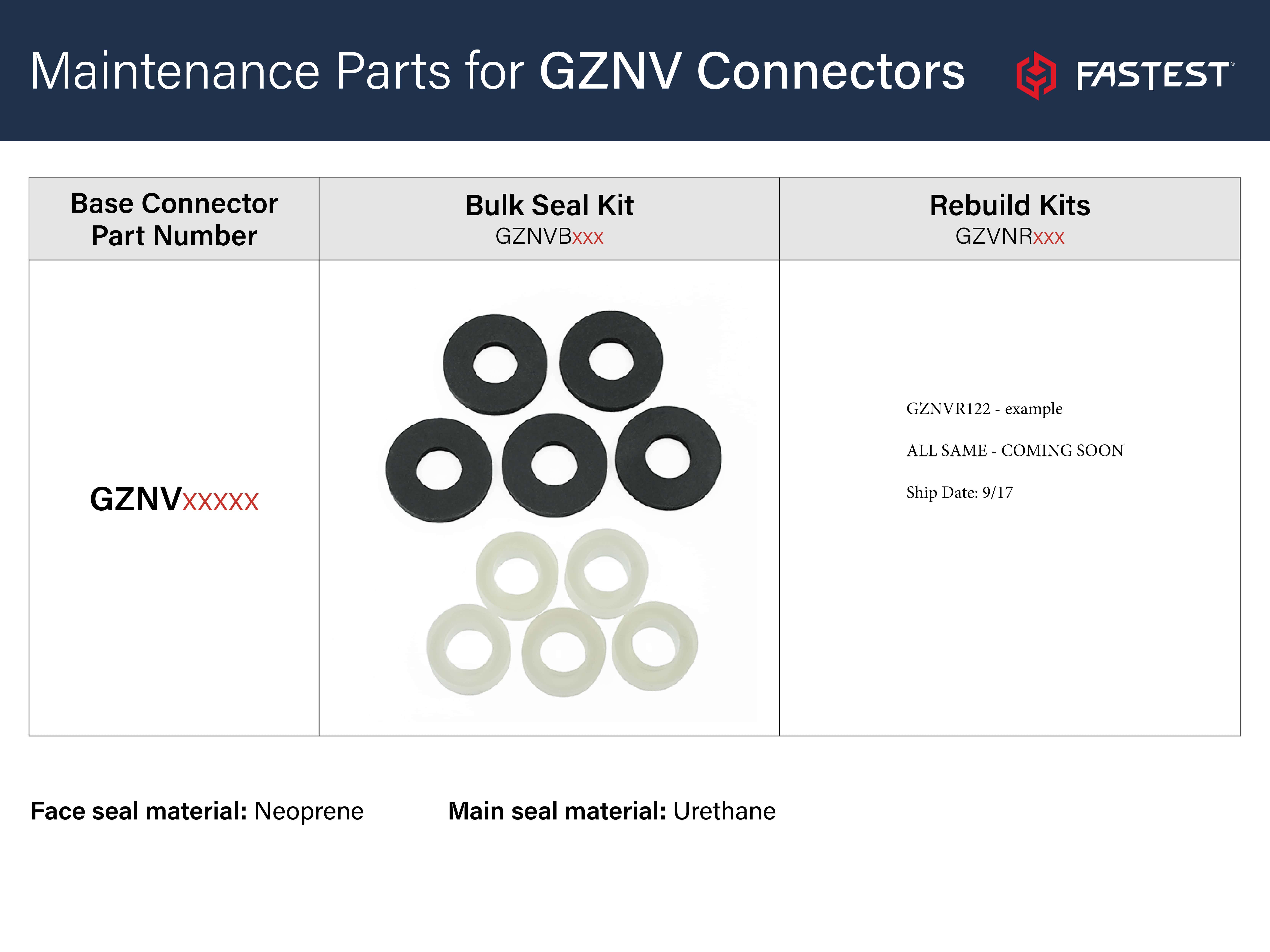

GZNV Main Seal Replacement: Click Here

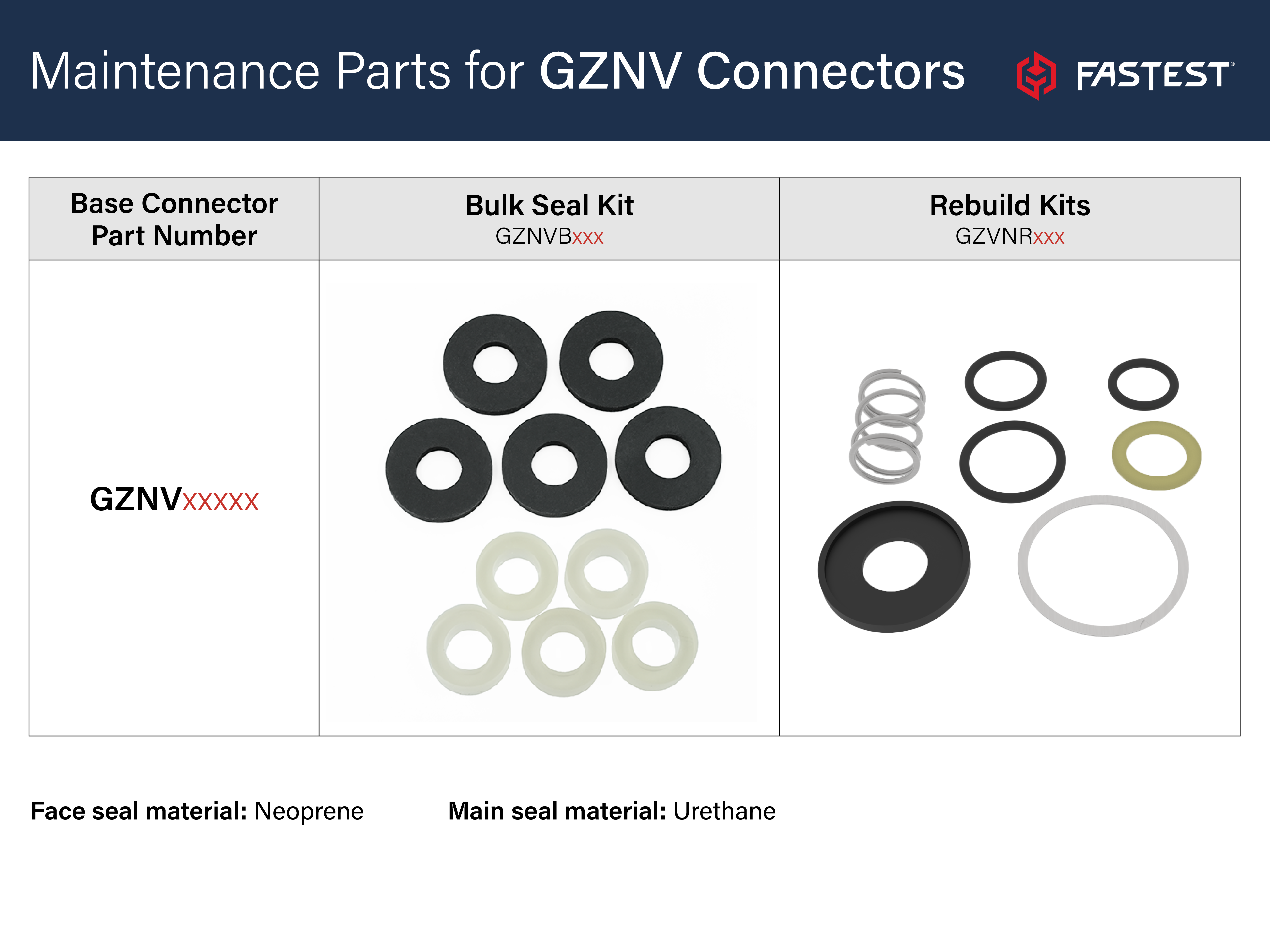

GZNV Rebuild / Repair: Click Here
